The Case

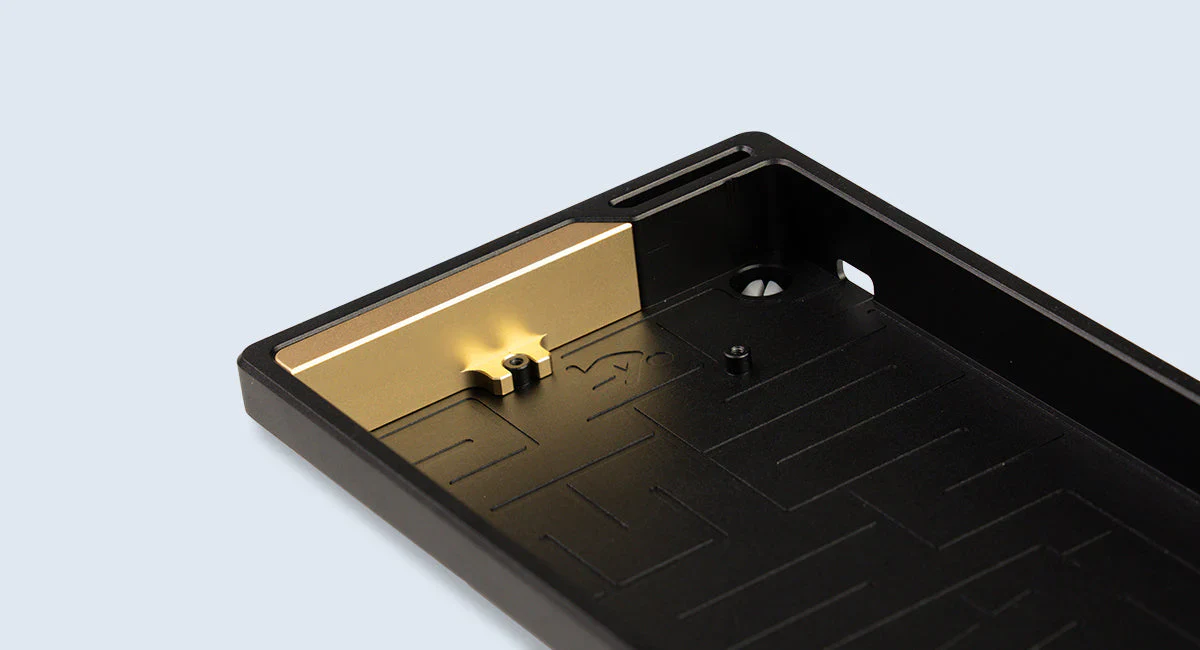

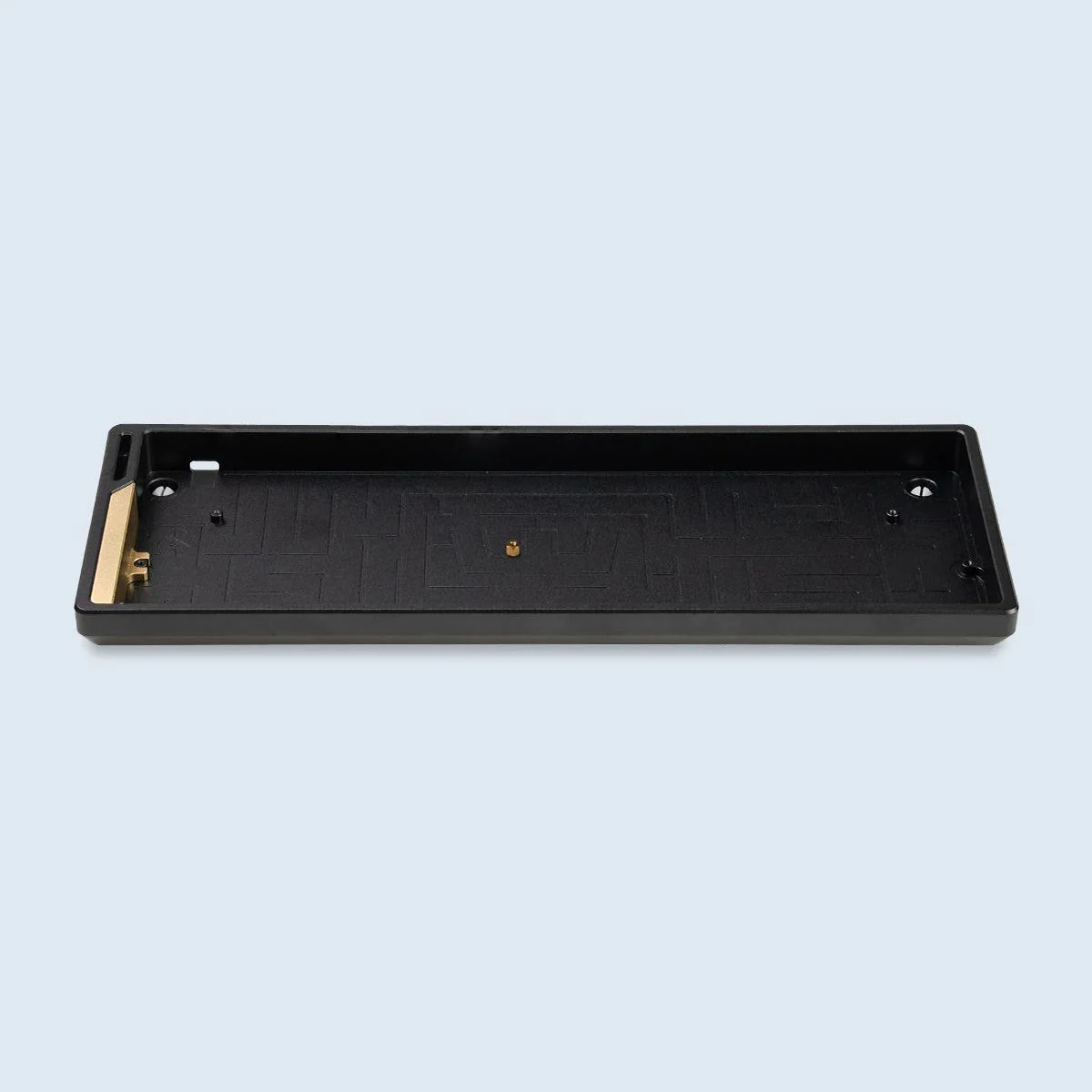

The Alumaze60 is a universal 60% tray-mount case that can fit the Wooting 60HE (module) and any universal 60% tray mount PCB. The Alumaze60 has subtle curvatures creating a unique looking aluminum case and breaking away from that typical rectangular shape. There is an accent piece on the left side to pull your attention, create contrast, and blend in the (optional) strap opening.

If you're going all-in, you can install the iconic strap with black and white Wooting text and it'll be immediately known what's (supposedly) inside the hood.

Design Philosophy

We've crafted the Alumaze60 with three core principles in mind:

Minimal Height: Achieving a sleek, low-profile design
Versatile Compatibility: Perfect fit for Wooting 60HE (module) and universal 60% tray mount PCBs + any modifications
Premium Feel: Substantial weight and quality construction without excessive cost

Please see the Technical Specifications for detailed measurements.

Features

Adjustable angle: Adjust the case angle from the standard 4 degrees to 7.5 degree by swapping out the silicone back feet.
Removable standoff: Remove the center and spacebar sided brass screw-in standoffs depending on your build
Universal tray mount: Compatible with the 60HE (Module) PCB and universal 60% tray mounted PCB.
Optional strap: Comes with a Black and White iconic Wooting strap.

Premium Finishes

Sandblasted Anodized colors are vibrant and reflect light, but are not perceived as "shiny" thanks to the sandblasted surface:

Just Black
Ocean Blue
Lavender Purple

Micro-Arc Oxidation (MAO) creates a unique ceramic feeling and matte surface that can endure more wear:

Concrete Gray

And to finish it off, we have two Painted variants:

Just White
Blossom Pink

Technical Specifications

Case Dimensions (LxW)	Inner: 287.5mm x 97mm \| 11.2in x 3.81in Outer: 305mm x 107mm \| 12in x 4.2in
Case Height	Measured by bottom row, OEM profile keycaps, silicone feet, and 60HE module. Standard 4° Feet: 30.11 mm \| 1.18 inch Optional 7.5° Feet: 29.57 mm \| 1.16 inch If you install with Cherry profile keycaps, you can reduce 2-2.5mm from the height.
Case Weight	575 grams
USB Port Opening	Position: Top left Size: 10mm x 4.5mm \| 0.39 inch x 0.17 inch
Compatibility	Compatible with Wooting 60HE+, 60HE v2, and universal GH60 PCB.
Materials	Case : AL5052 Strap : Nylon Attachment : Silicone Feet: Silicone Binding post : Steel Screws : Stainless steel
Color/Finish	Just Black: Sandblasted Anodized Ocean Blue: Sandblasted Anodized Lavender Purple: Sandblasted Anodized Concrete Gray: Micro-Arc Oxidation (MAO) Just White: Painted Blossom Pink: Painted
Stand-offs	4 fixed standoffs 2 removable brass standoffs
What's in the box?	1x Alumaze60 Case 1x Alumaze60 Accent Piece 1x "Wooting" Strap - Black/White 1x Silicone attachment to attach the strap 2x Binding post M2.5x2 set for silicone attachment 6x Screw - M2x6

Wooting Keyboard Accessories

Wooting Detachable USB-C Coiled/Straight Cable Set

Wooting 80HE Module (ANSI)

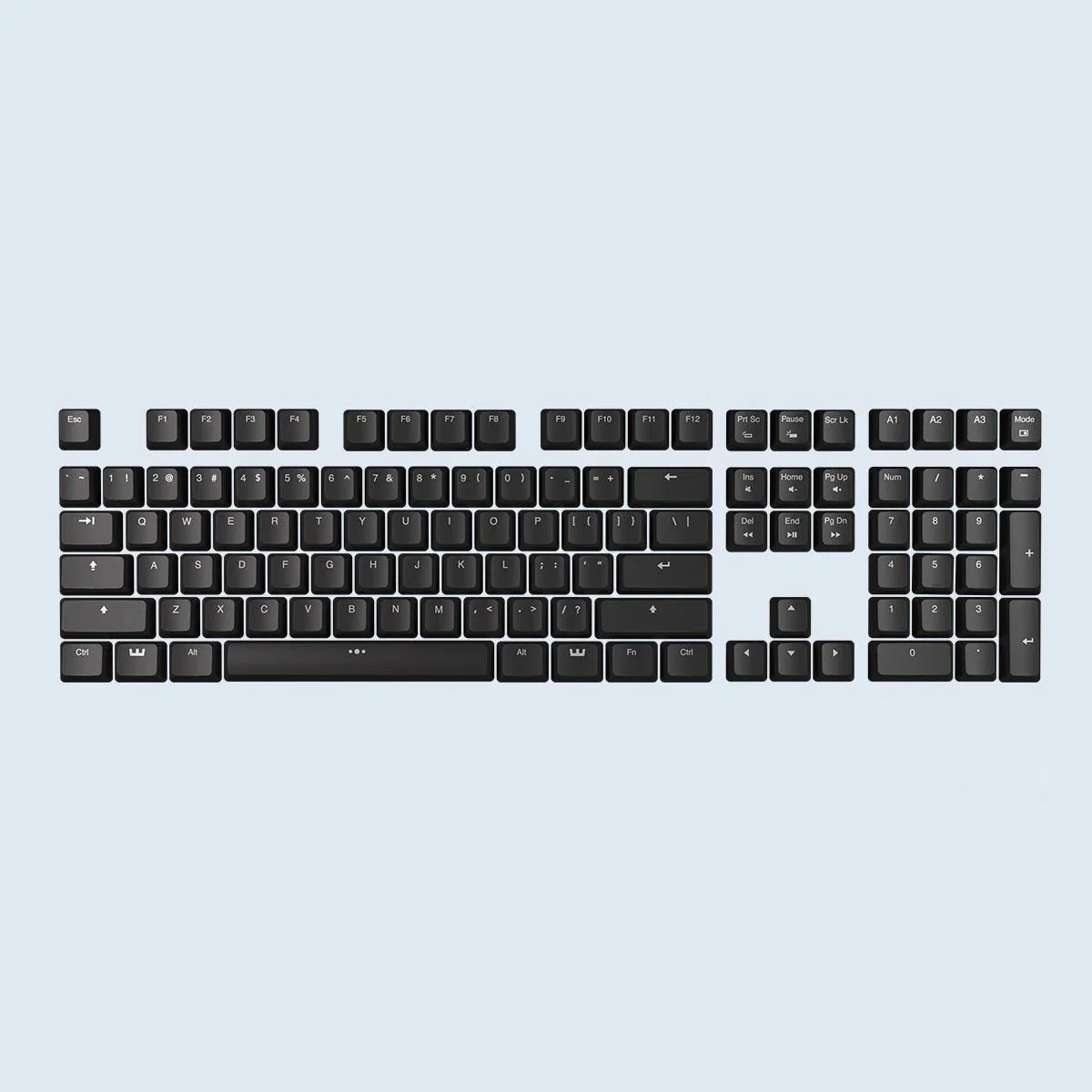

Wooting Etched Backlit ABS keycap Set (ANSI)

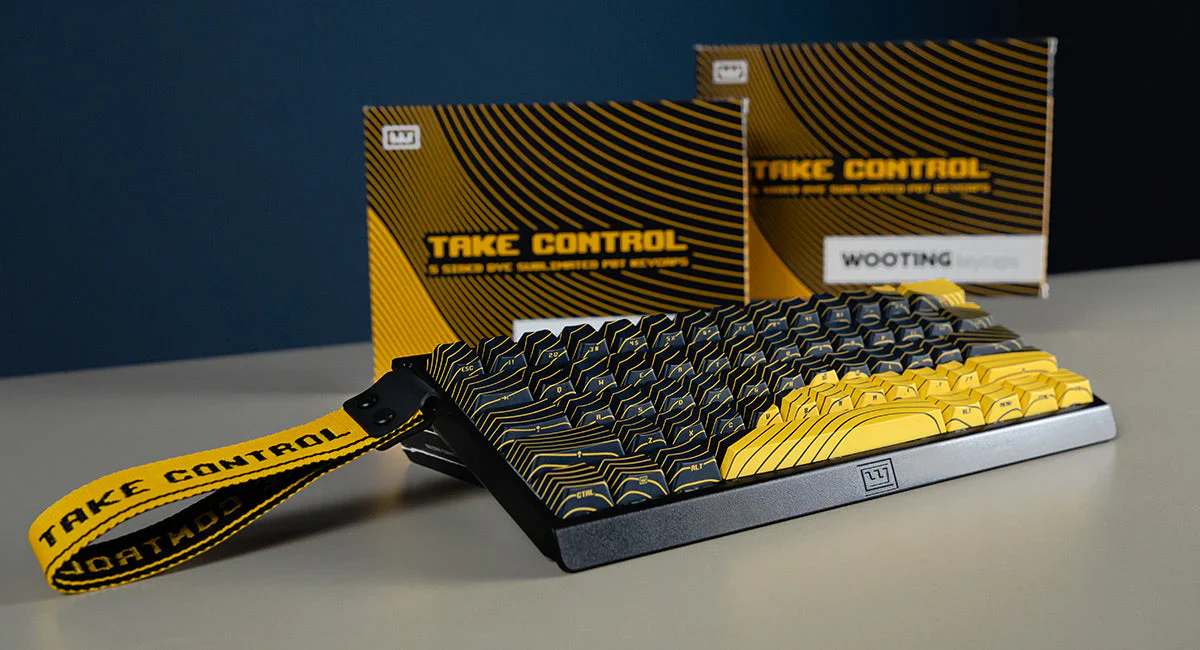

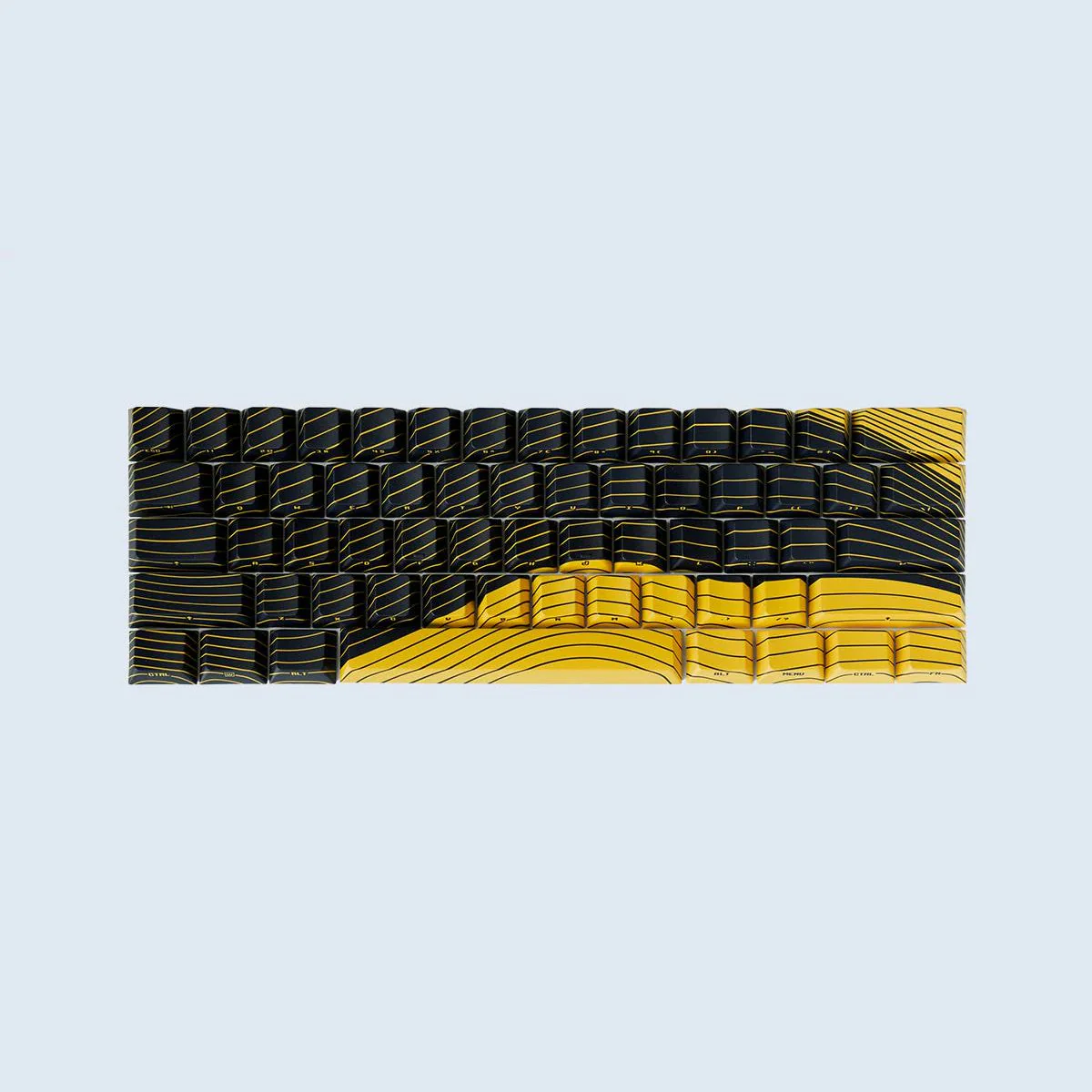

Wooting 5 sided Dye-sub PBT Magnetic Wave Keycap Set (ANSI)

Wooting 80HE Plastic Case

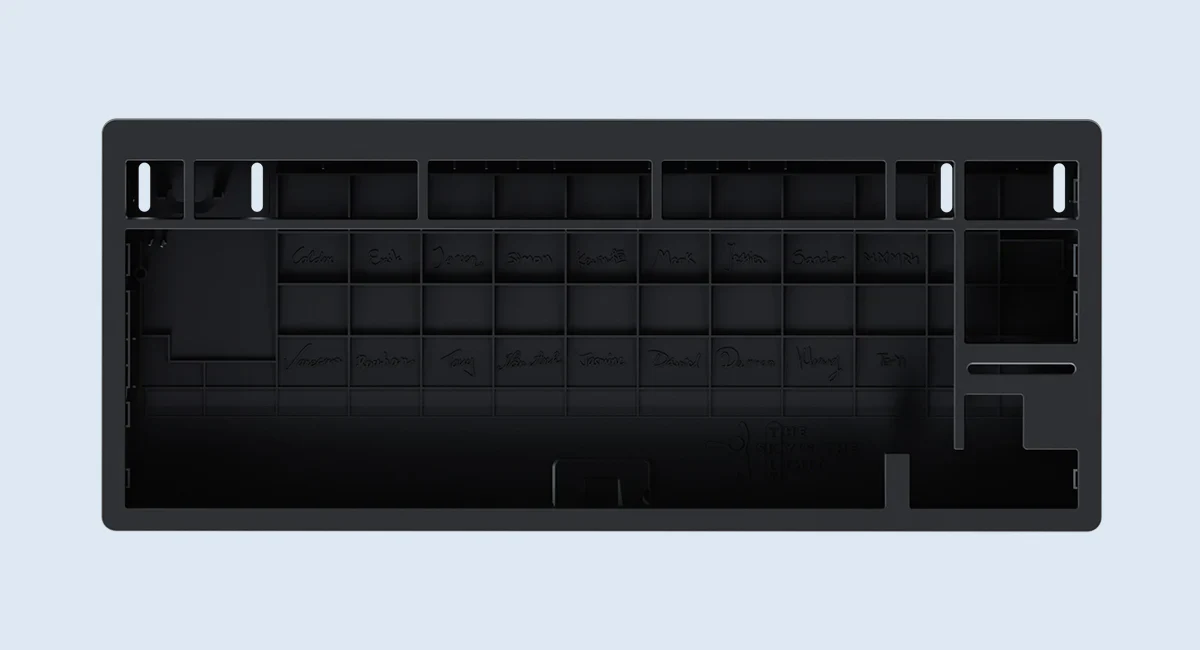

Wooting 80HE Zinc Alloy Case

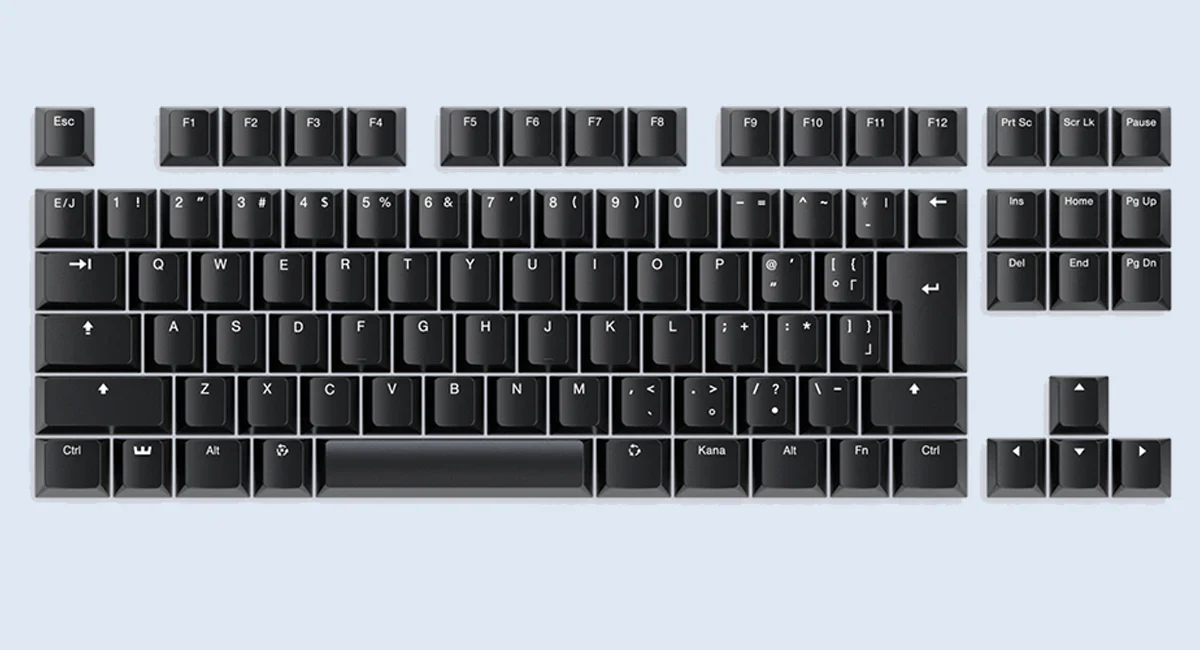

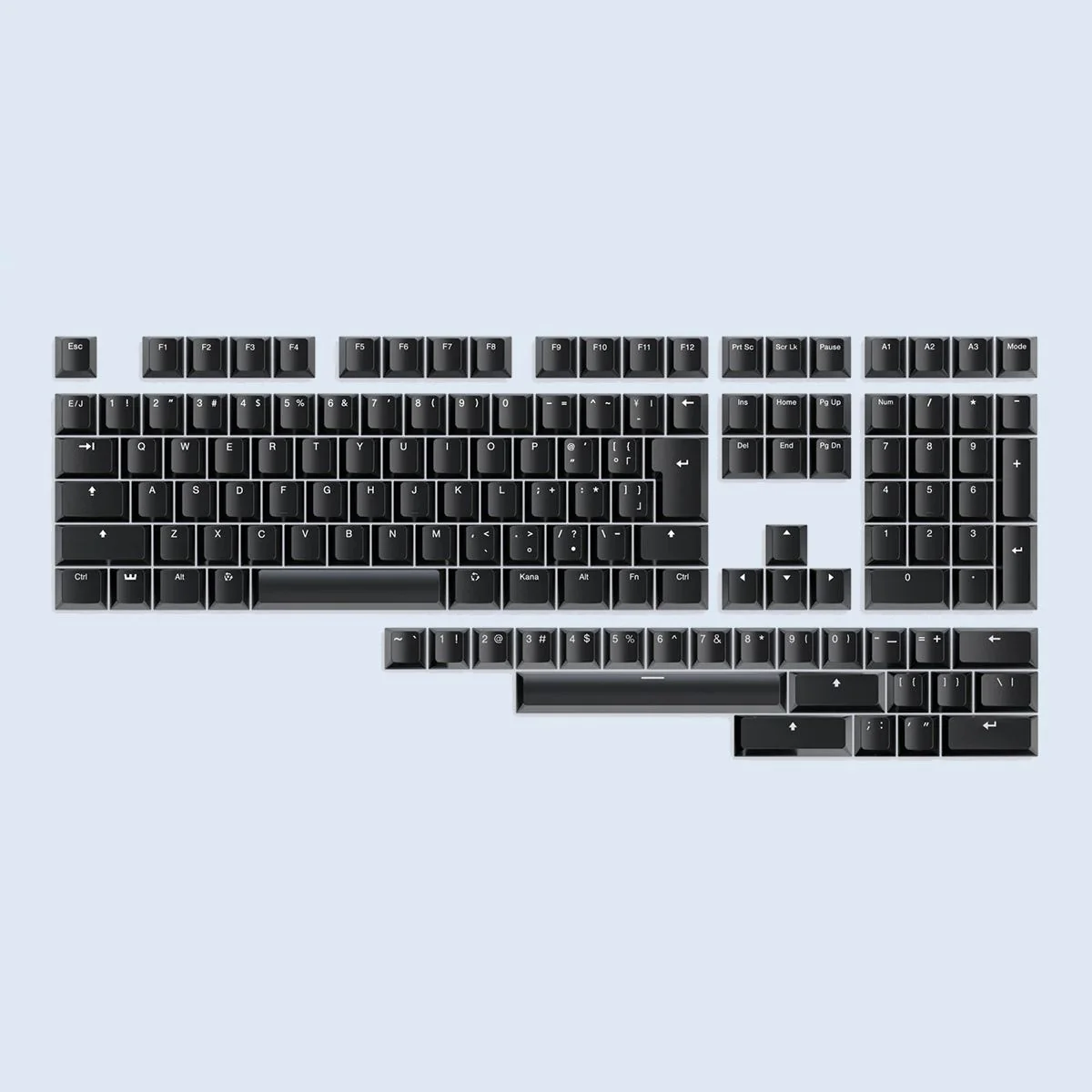

Wooting Dye-sub PBT Keycap Set

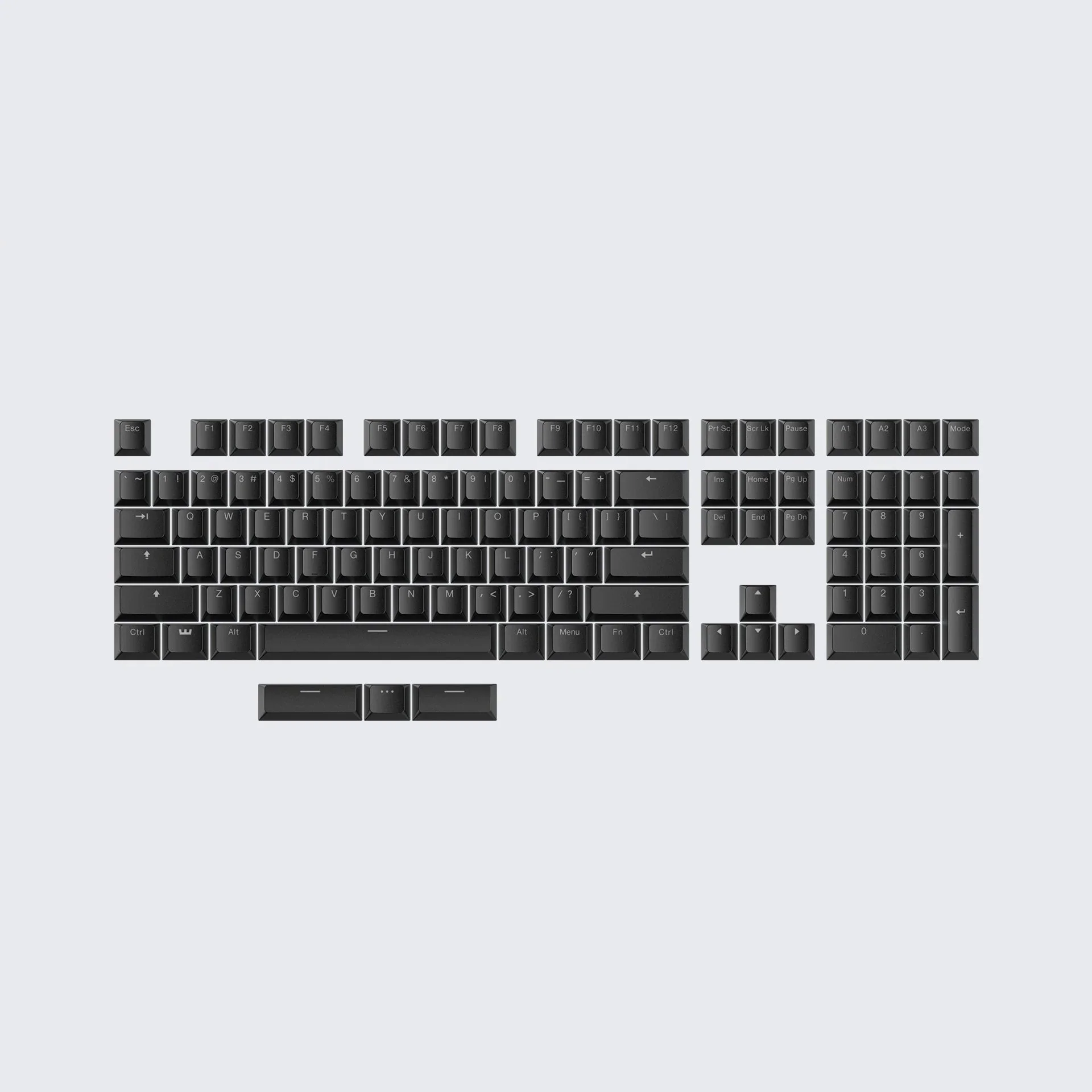

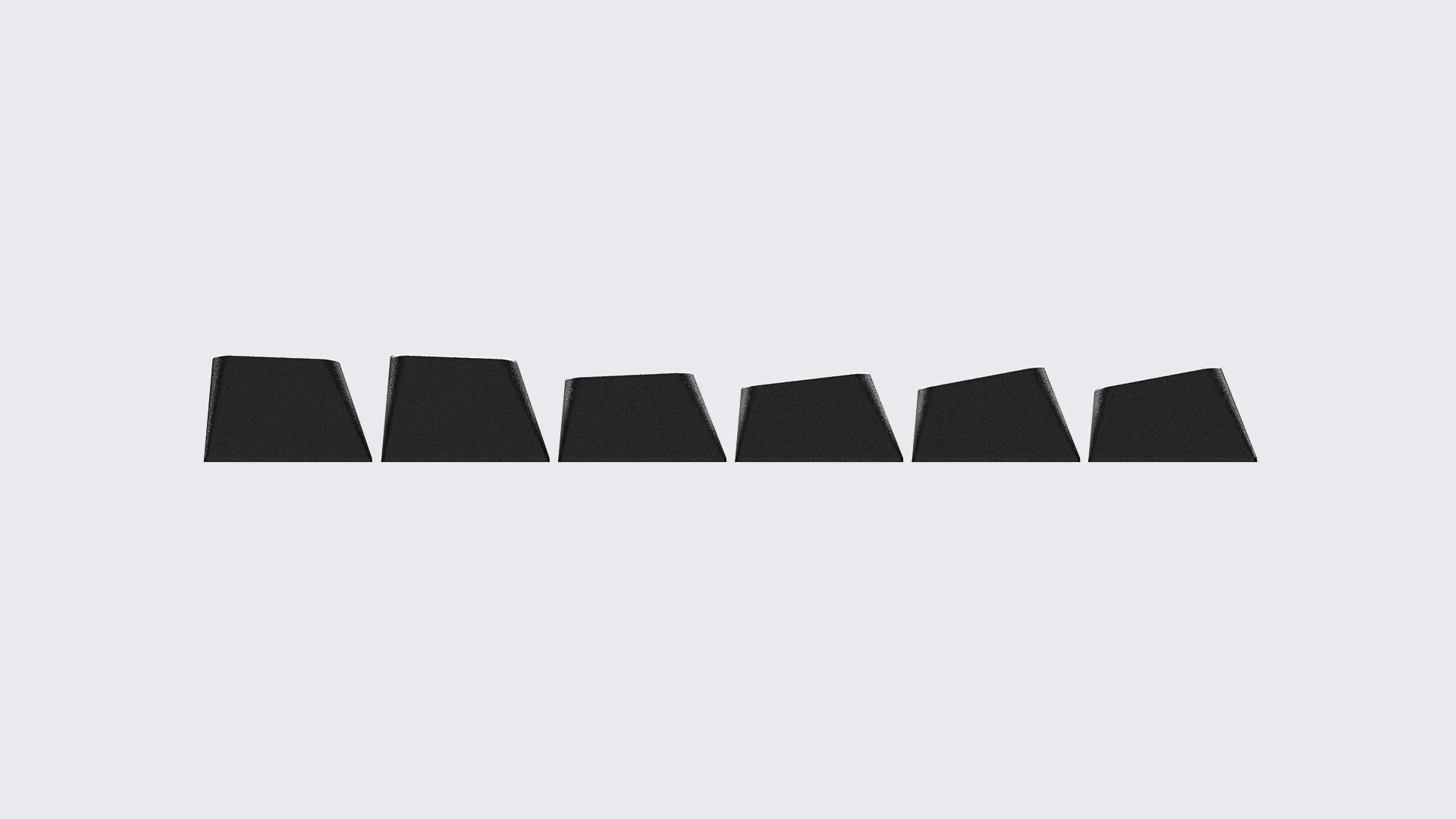

Wooting Double-Shot PBT Backlit keycap Set (ANSI)
